Specification

Material :

• Holder Body: High-quality Gold plated for durability and corrosion resistance

• Insulating Components: High-temperature resistant insulating materials

• Electrical Contacts: Gold-plated or copper contacts for optimal electrical conductivity

Measurement Types :

• Through-Plane Conductivity: Measures electrical conductivity perpendicular to the plane of the sample

• In-Plane Conductivity: Measures electrical conductivity parallel to the plane of the sample

Components :

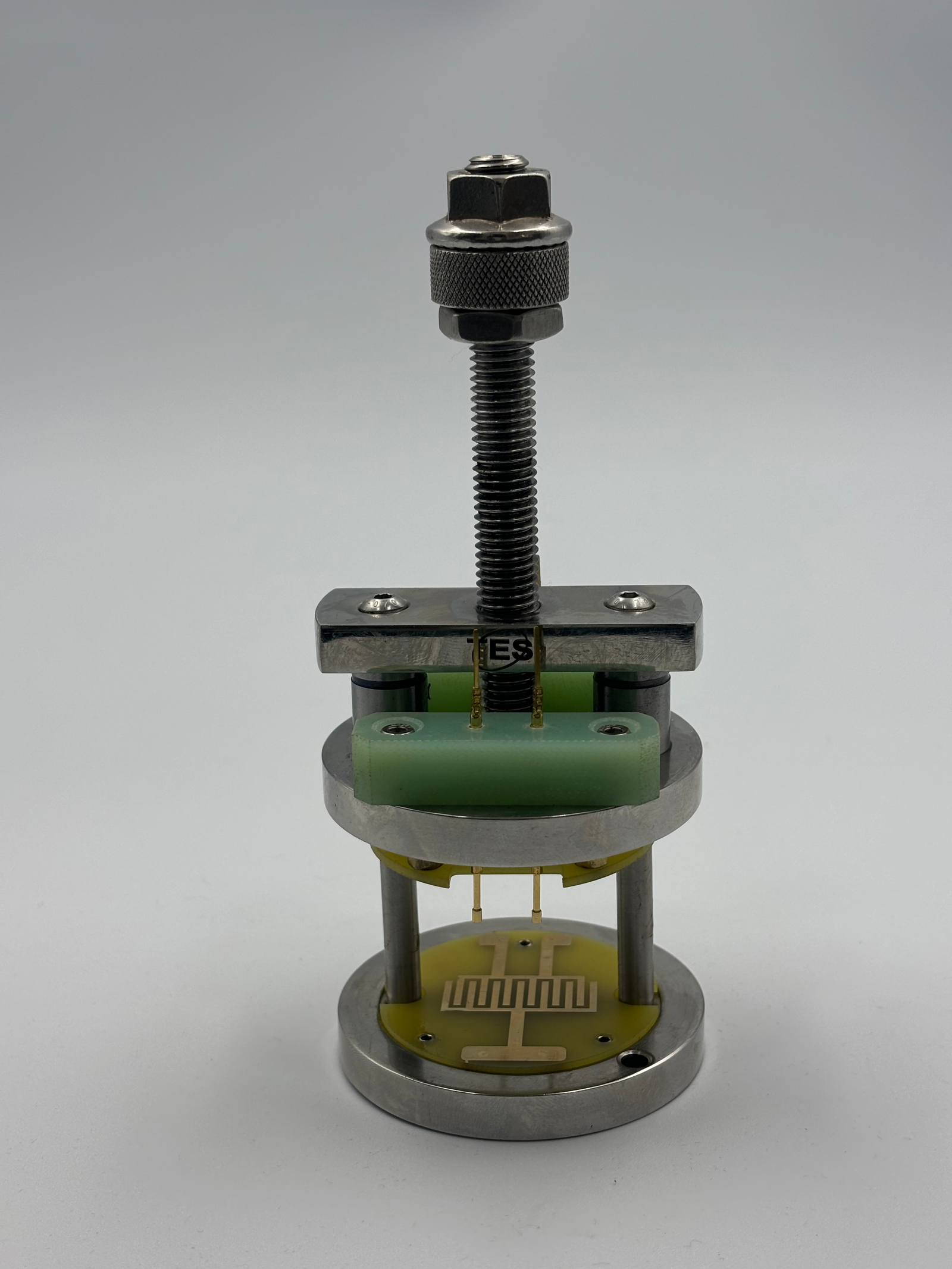

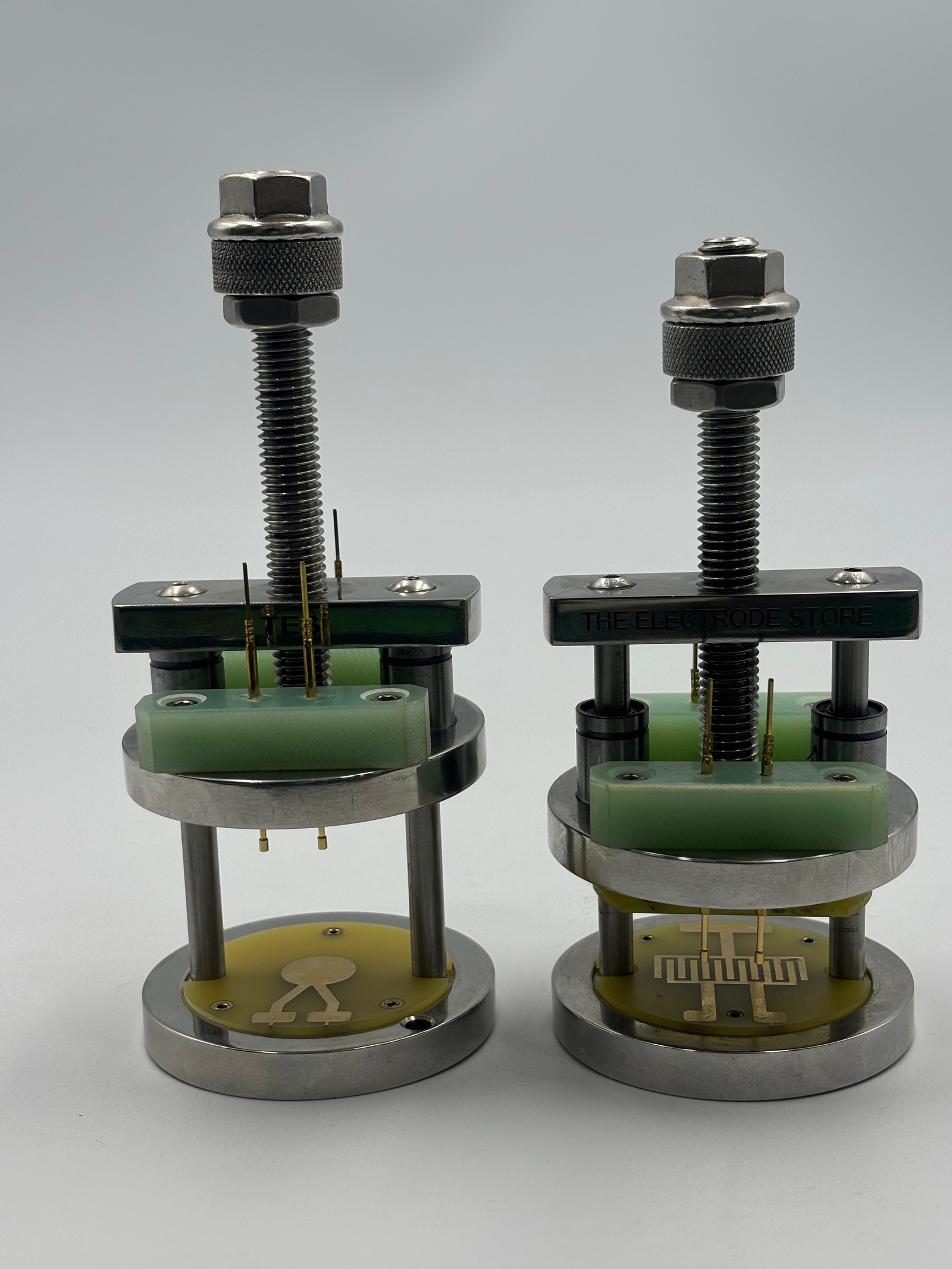

• Holder Body: Rigid frame to securely hold the sample

• Clamping Mechanism: Adjustable clamps to ensure consistent pressure and contact.

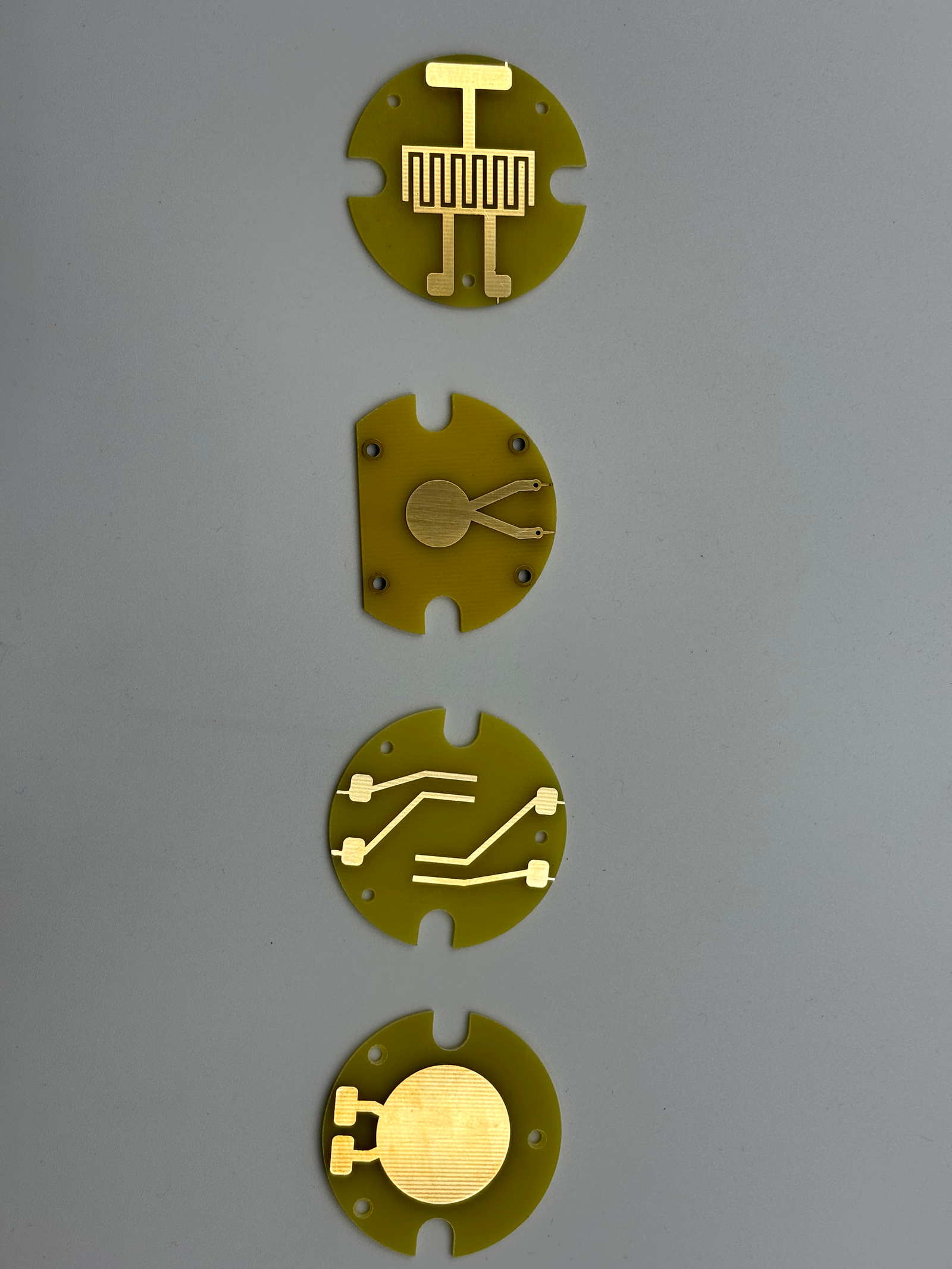

• Electrical Contacts: Configurable contacts for through-plane and in-plane measurements.

• Temperature Control Ports: Integrated ports for temperature sensors and heating elements.

• Sample Positioning Guide: Ensures precise alignment of the sample within the holder

Dimensions :

• Standard Sizes: Customizable to fit various sample sizes and shapes.

• Holder Height: Adjustable to accommodate different sample thicknesses.

Operating Conditions :

• Temperature Range: RT to 120°C (varies with materials used).

• Pressure Range: Adjustable clamping pressure for different testing requirements.

Applications

• Research and Development: Ideal for testing and developing new conductive materials and composites.

• Quality Control: Used for routine testing of materials in manufacturing and production environments.

• Performance Evaluation: Suitable for evaluating the conductivity of materials under various conditions.

• Material Testing: Enables thorough assessment of conductive properties in materials science and engineering applications.

• Academic and Industrial Research: Applied in academic research labs and industrial R&D centers for advanced material studies.
